Piles

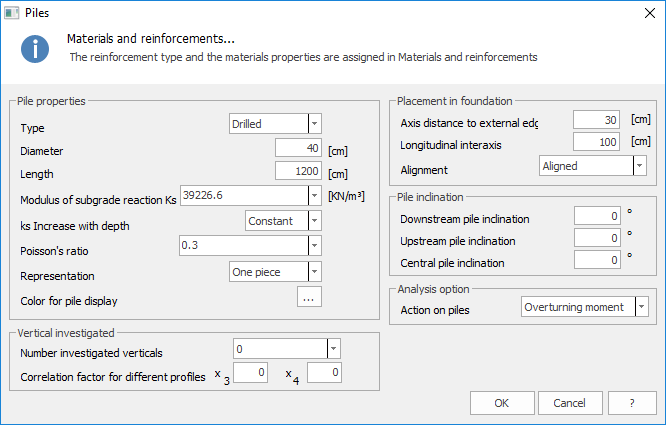

For the wall types on piles the Piles command is active, in which the pile type, the geometry, the position in the foundation and the calculation options are defined. On the left the window shows live the section of the foundation with the piles (diameter, inclination, length and levels of the rows) and the plan layout with spacings and offsets; the drawing follows the data as they are typed. The calculation model is described in Pile group.

Pile properties

  • Type: drilled, driven or micropiles. Micropiles are calculated as drilled piles; in the wall drawing they have the irregular outline of the grouted bulb.
  • Reinforcement: longitudinal bars or steel tube. It is the same choice as in Materials and Armatures: changing it here changes it there, and vice versa. When micropiles are selected the reinforcement switches automatically to steel tube, until it is chosen manually; on confirmation, if the tube of the project does not fit in the pile, a 114 x 10 mm tube is proposed. Bar diameters, stirrups and tube data are assigned in Materials and Armatures.
  • Pile diameter and length.
  • Representation of the pile in the drawing (full or broken) and colour.

Soil around the pile

Coefficient of horizontal reaction ks (from the list of typical values or typed in), variation with depth (constant or increasing) and Poisson coefficient, used in the calculation of the settlement and of the axial stiffness of the pile.

Foundation placement

With one, two or three rows the following are assigned:

  • the distance of the pile axis from the outer edge of the foundation: the outer rows are placed symmetrically, with three rows the central one lies halfway;
  • the longitudinal spacing, that is the distance between the piles along the wall;
  • with two rows the alignment: aligned or staggered piles (the second row offset by half a spacing); with three rows the central row is always staggered;
  • the inclination of each row, in degrees from the vertical, positive when the tip points towards the downstream side.

With the Wall on rows of piles type the section becomes a table of rows (up to 8): for each one distance from the downstream edge, inclination, spacing along the wall and offset. Add row and Remove row change the number of rows.

On confirmation the program checks the spacings: a spacing or a distance between the rows smaller than the diameter is an error, smaller than 3 diameters is a warning. When appropriate, it proposes the recommended values with Assign the recommended values; one can also proceed with one's own values or go back to the data.

Analysis options

  • Action on the piles: Overturning moment (only the overturning moments about the toe, conservative choice) or Resulting moment (equilibrium of all the actions). In both cases the moment is transferred to the centroid of the piles (see Pile group).
  • % of load to be assigned to the piles: from 100% (all to the piles) down to 70%. The remaining part of the vertical loads and of the moment goes to the soil under the pile cap (mixed foundation); the horizontal force always goes entirely to the piles.
  • Pile-cap connection: Hinged or Fixed, with two or more rows. The (i) icon next to the choice explains when to use one or the other.
  • Group efficiency: None (single pile) or Converse-Labarre, which reduces the bearing capacity of each pile according to spacings and number of rows. Usually none for drilled piles in sand, Converse-Labarre in clays.

Investigated verticals

Number of investigated verticals (investigation profiles) and the related correlation factors ξ3 and ξ4, with which the characteristic resistance is derived from the calculated one. A zero value counts as 1.
