Metal profile¶
MP calculates the ultimate load of steel piles driven directly into the ground even when the section is not circular: HEA/HEB/IPE sections, C (channel, UPN) sections, angles, sheet piles or built-up sections. The section is described in the Generic section tab, and lateral friction through the perimeter development.

How to enter the pile¶

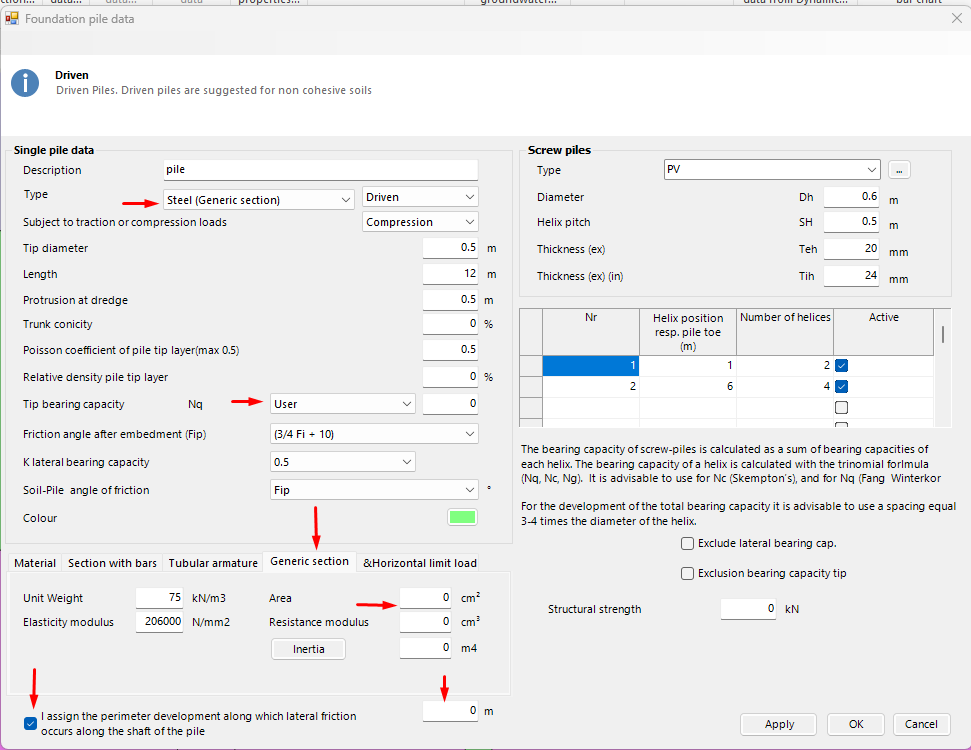

In the Foundation pile data window:
- Type: select Steel (Generic section) and, on the right, Driven.
- Tip diameter: enter an equivalent diameter of the section, used by the calculations that need a diameter and by the graphics. Tip load and pile weight are computed with the Area of the generic section (step 4).
- Length, Protrusion at dredge, Friction angle after embedment (Fip), K lateral bearing capacity and Soil-Pile angle of friction as for any driven pile. For steel piles K = 0.5 and Fip = 3/4·Fi + 10 are recommended.
- In the Generic section tab enter the section properties from the steel tables:
- Unit Weight (steel about 78.5 kN/m³) and Elasticity modulus (206000–210000 N/mm²);
- Area (cm²), Resistance modulus (cm³) and Inertia (m⁴).
- Tick I assign the perimeter development along which lateral friction occurs along the shaft of the pile and enter the perimeter in metres in the box on the right.
Which perimeter to assign¶
The perimeter development is the length of the section outline in contact with the soil, on which lateral friction is mobilised. MP computes the shaft capacity of each layer as shear resistance × assigned perimeter × layer thickness. If the box is not ticked, MP uses the circumference of the diameter (π·D).
- HEA, HEB, IPE, C (UPN) sections, angles: assign the sum of the outline sides. This equals the lateral surface per metre (m²/m) given in steel section tables (the "painting surface"): a UPN 200, for example, has about 0.66 m²/m, so assign 0.66 m.
- Open sections that plug during driving (small H or C sections in fine soils): you can assign the perimeter of the circumscribed rectangle (for a C section: 2·h + 2·b), treating the soil between the flanges as moving with the pile.
Tip load¶
With Steel (Generic section) the tip load is computed on the Area entered in the Generic section tab. For an open section this is the steel area only; if the section is expected to plug, you can enter the area of the circumscribed rectangle. If the Area is 0 the program uses the tip diameter.
To exclude the tip contribution altogether, tick Exclusion bearing capacity tip, or set Tip bearing capacity to User with Nq = 0.
